Import & Export Service

GitHubEdit on GitHub

Import/export is provided by the server and allows converting Office files to Univer documents or exporting back to Office formats.

Prerequisites

  • Server deployment completed (see Quick Start)
  • Exchange worker and Temporal are running
  • Object storage is reachable

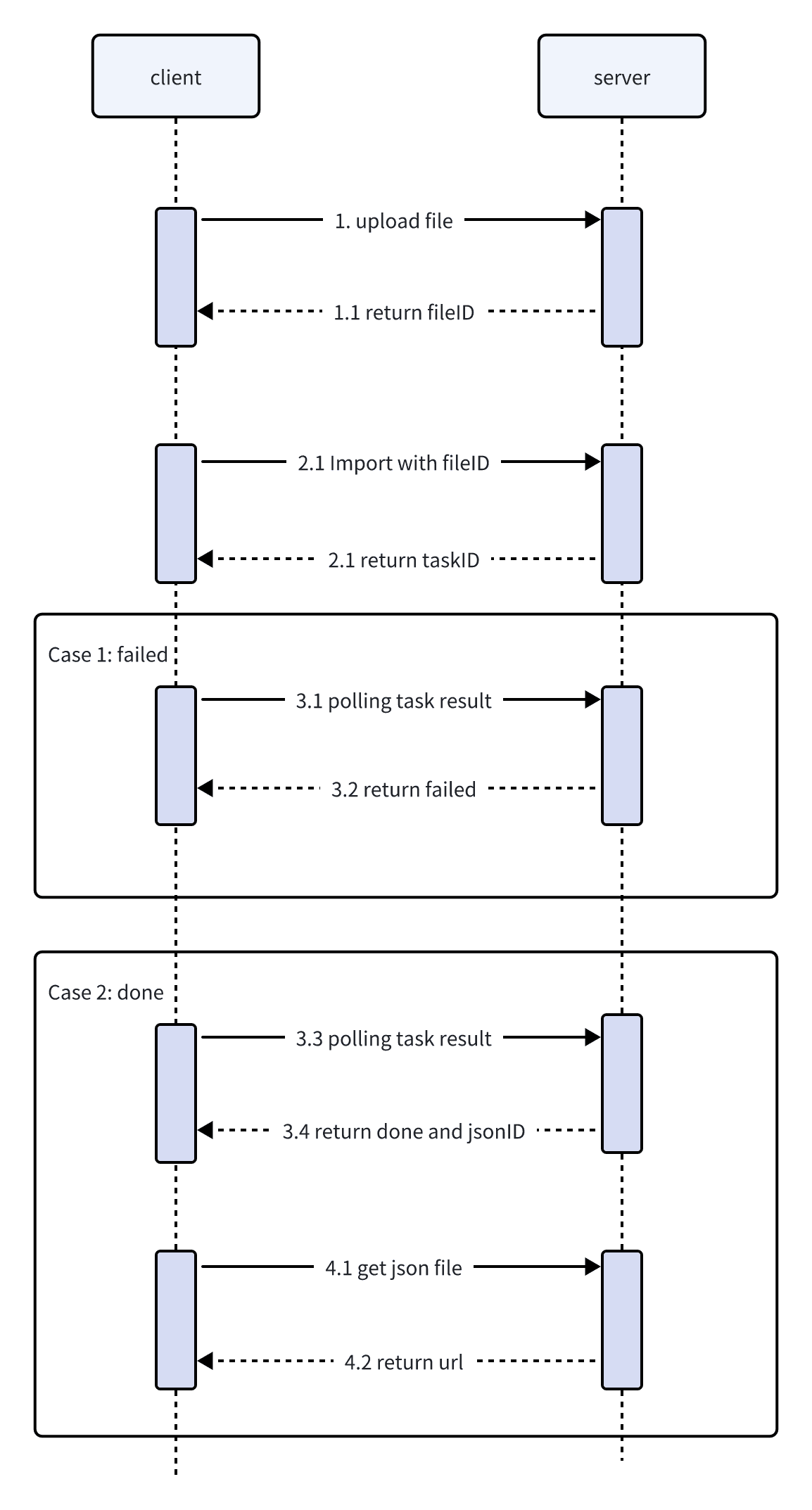

Import Flow

  1. Upload the file to object storage and get fileID
  2. Call the import API with outputType
    • 1: import as a unit document
    • 2: import as JSON
  3. Poll task status:
    • pending: keep polling
    • done: get import.unitID or import.jsonID
    • failed: read error.message
  4. If importing JSON, follow Server-side data conversion

import

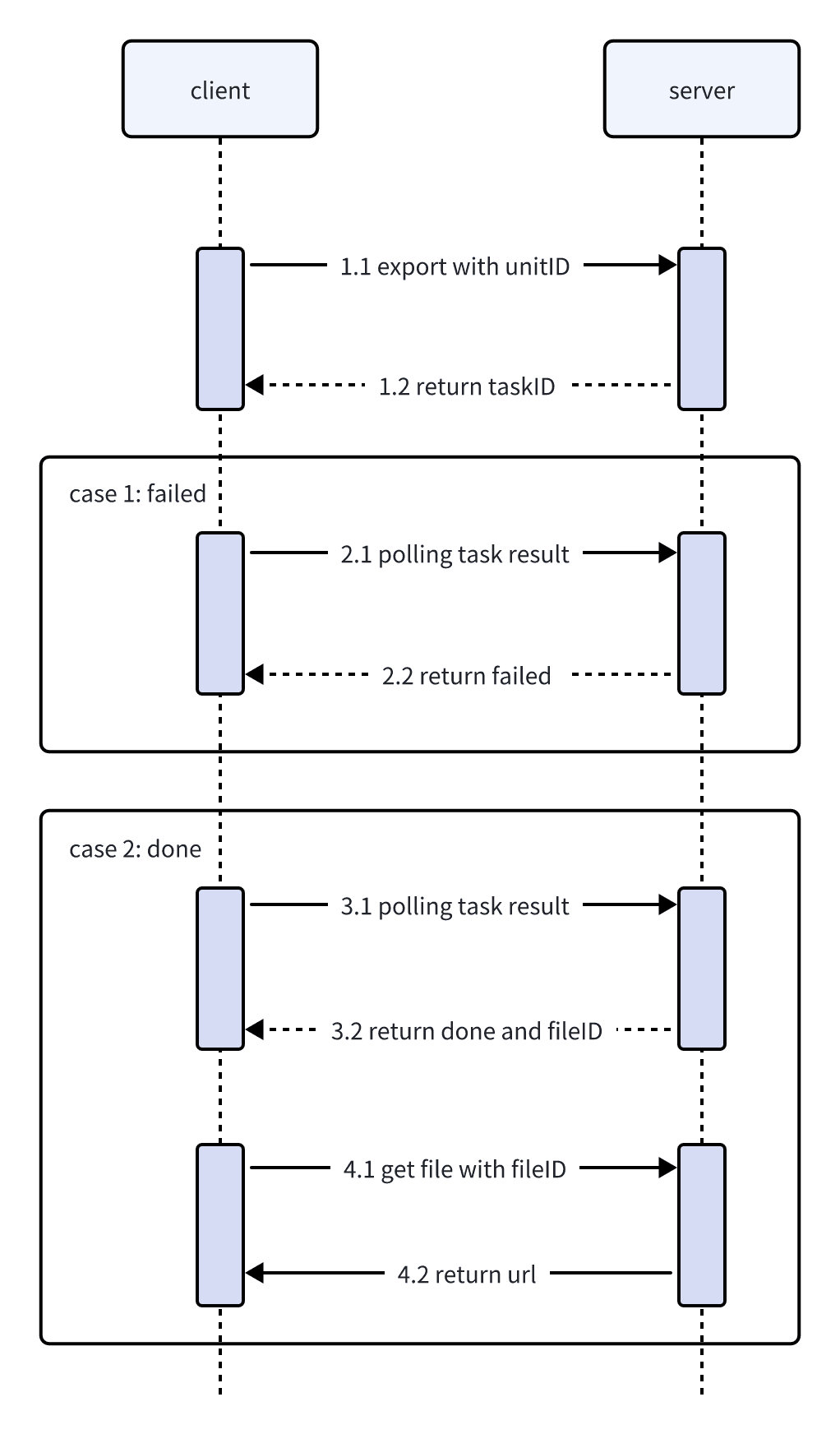

Export Flow

  1. Call export API with unitID to get taskID
  2. Poll status:
    • pending: keep polling
    • done: get export.fileID
    • failed: read error.message
  3. Use export.fileID to get a download URL

export

Implementation Example

The snippets below demonstrate a complete TypeScript workflow using fetch. Replace BASE_URL with your Univer server endpoint and include the required auth header (for example cookie or Authorization) in every request.

1. Upload a file

async function uploadFile(file: File): Promise<string> {
  const res = await fetch(
    `${BASE_URL}/universer-api/stream/file/upload?size=${file.size}`,
    {
      method: 'POST',
      headers: {
        // Add your auth header here, e.g.
        // cookie: '_univer=XXXXXX',
      },
      body: file,
    },
  )

  const data = await res.json()
  if (data.error?.code !== 1) {
    throw new Error(data.error?.message || 'Upload failed')
  }
  return data.FileId // used as fileID in the next step
}

2. Poll task status

interface TaskResult {
  status: 'pending' | 'done' | 'failed'
  error?: { code: number, message: string }
  import?: { unitID?: string, jsonID?: string }
  export?: { fileID?: string }
}

async function pollTask(taskID: string, interval = 2000): Promise<TaskResult> {
  while (true) {
    const res = await fetch(
      `${BASE_URL}/universer-api/exchange/task/${taskID}`,
      {
        headers: {
          // cookie: '_univer=XXXXXX',
        },
      },
    )
    const data: TaskResult = await res.json()

    if (data.status === 'done' || data.status === 'failed') {
      return data
    }

    await new Promise(resolve => setTimeout(resolve, interval))
  }
}

3. Import a file

interface ImportParams {
  fileID: string
  type: 1 | 2 // 1 = doc, 2 = sheet
  outputType: 1 | 2 // 1 = unit, 2 = json
  minSheetRowCount?: number
  minSheetColumnCount?: number
}

async function importFile(params: ImportParams): Promise<string> {
  const res = await fetch(
    `${BASE_URL}/universer-api/exchange/${params.type}/import`,
    {
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
        // cookie: '_univer=XXXXXX',
      },
      body: JSON.stringify({
        fileID: params.fileID,
        outputType: params.outputType,
        minSheetRowCount: params.minSheetRowCount ?? 1000,
        minSheetColumnCount: params.minSheetColumnCount ?? 20,
      }),
    },
  )

  const data = await res.json()
  if (data.error?.code !== 1) {
    throw new Error(data.error?.message || 'Import request failed')
  }

  // Poll until the task is done or failed
  const taskResult = await pollTask(data.taskID)
  if (taskResult.status === 'failed') {
    throw new Error(taskResult.error?.message || 'Import failed')
  }

  return params.outputType === 1
    ? taskResult.import!.unitID!
    : taskResult.import!.jsonID!
}

4. Export a file

interface ExportParams {
  unitID: string
  type: 1 | 2 // 1 = doc, 2 = sheet
  sscSwitch?: boolean
}

async function exportFile(params: ExportParams): Promise<string> {
  const res = await fetch(
    `${BASE_URL}/universer-api/exchange/${params.type}/export`,
    {
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
        // cookie: '_univer=XXXXXX',
      },
      body: JSON.stringify({
        unitID: params.unitID,
        type: params.type,
        sscSwitch: params.sscSwitch ?? false,
      }),
    },
  )

  const data = await res.json()
  if (data.error?.code !== 1) {
    throw new Error(data.error?.message || 'Export request failed')
  }

  const taskResult = await pollTask(data.taskID)
  if (taskResult.status === 'failed') {
    throw new Error(taskResult.error?.message || 'Export failed')
  }

  // Get a signed download URL
  const urlRes = await fetch(
    `${BASE_URL}/universer-api/file/${taskResult.export!.fileID!}/sign-url`,
    {
      headers: {
        // cookie: '_univer=XXXXXX',
      },
    },
  )
  const urlData = await urlRes.json()
  if (urlData.error?.code !== 1) {
    throw new Error(urlData.error?.message || 'Failed to get download URL')
  }

  return urlData.url
}
