USIP Integration

Univer Pro does not include an account system by default. If you need identity verification, permission control, or system integration, use USIP (Univer Server Integration Protocol). USIP is an SPI: Univer defines the interfaces, and your system implements them.

Use Cases

• Access requires login
• Role-based editing permissions
• Sync collaborator info, comments, and edit time

Integration Flow

1. Implement the USIP APIs (see below)
2. Enable USIP in deployment config
3. Forward auth headers from the client (e.g., token)

USIP APIs

USIP currently covers three categories:

• 👥 Account: identity verification, user info
• 🔒 Permissions: role and collaborators
• 📄 Document: last edit time

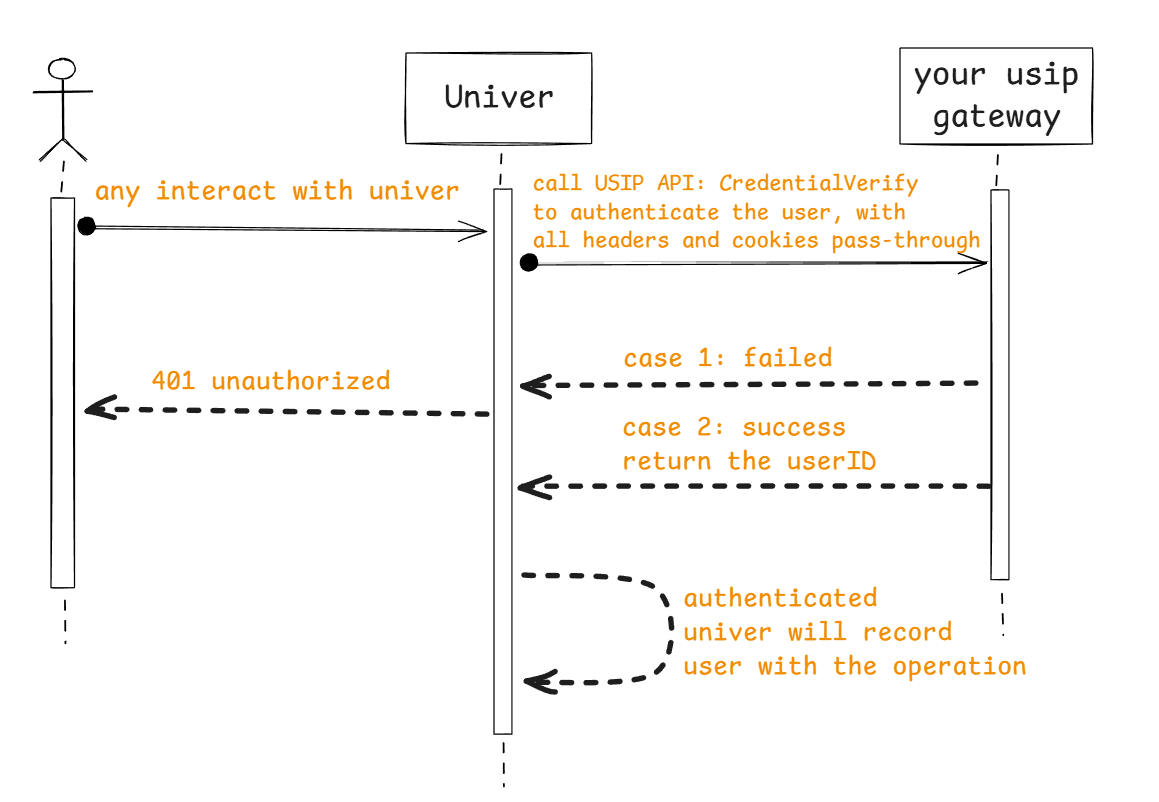

User Authentication

When It’s Called

Every request between client and server triggers authentication.

Flow

API Definition

{  "user": {    "userID": "ace55655ceabd55g",    "name": "alice",    "avatar": "https://image.xx/acde55acb45bbead55"  }}

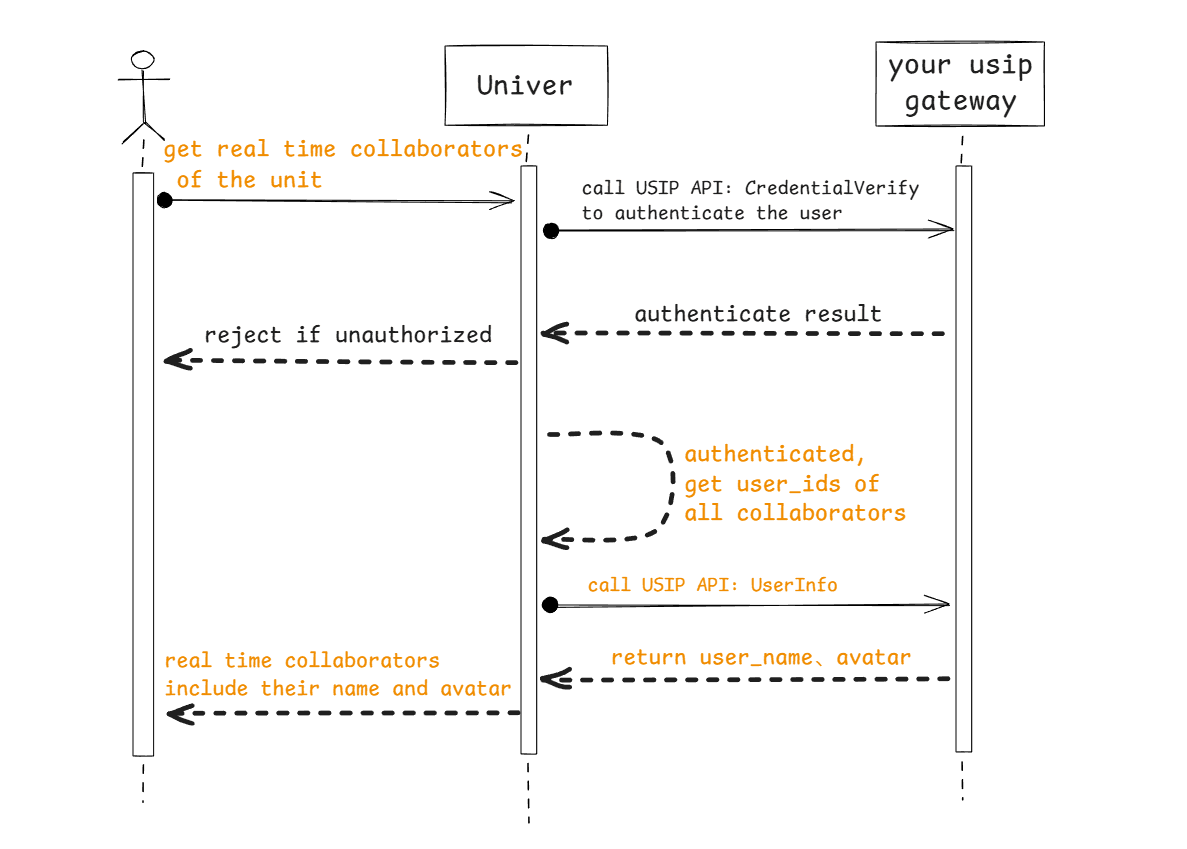

Batch User Info

When It’s Called

For showing collaborator avatars/names and comment authors.

Flow

API Definition

{  "userIDs": [    "user_id1",    "user_id2",    "user_id3"  ]}

{  "users": [    {      "userID": "user_id1",      "name": "name1",      "avatar": "https://xxxx"    },    {      "userID": "user_id2",      "name": "name2",      "avatar": "https://xxxx"    },    {      "userID": "user_id3",      "name": "name3",      "avatar": "https://xxxx"    }  ]}

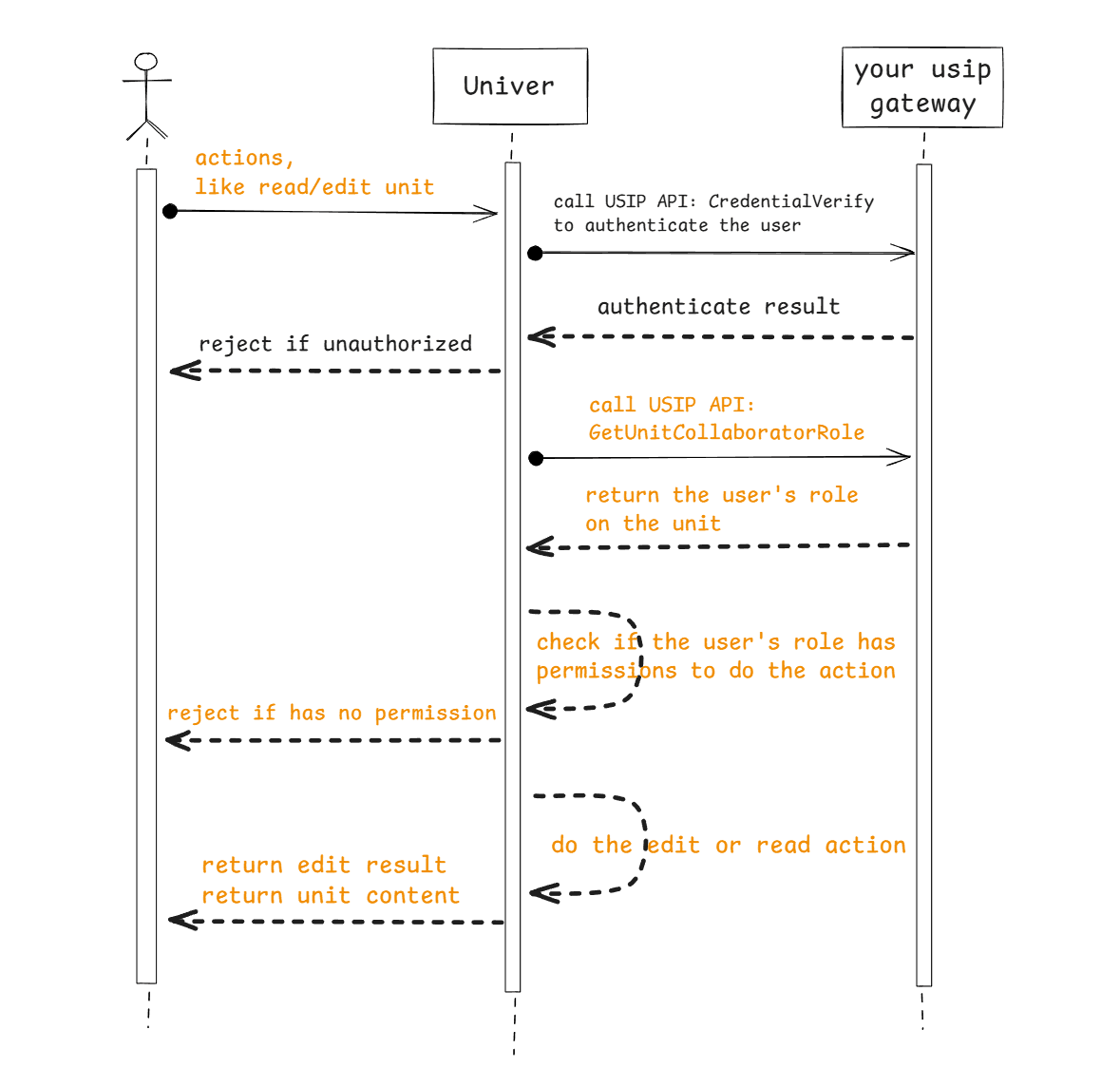

User Role

When It’s Called

To determine permissions for reading/editing a document.

Flow

API Definition

curl -X GET "http://sample.univer.ai/role?unitID=acff-adebc125e45b&userID=acd5455e44fc5bb55"

{  "userID": "acd5455e44fc5bb55",  "role": "editor"}

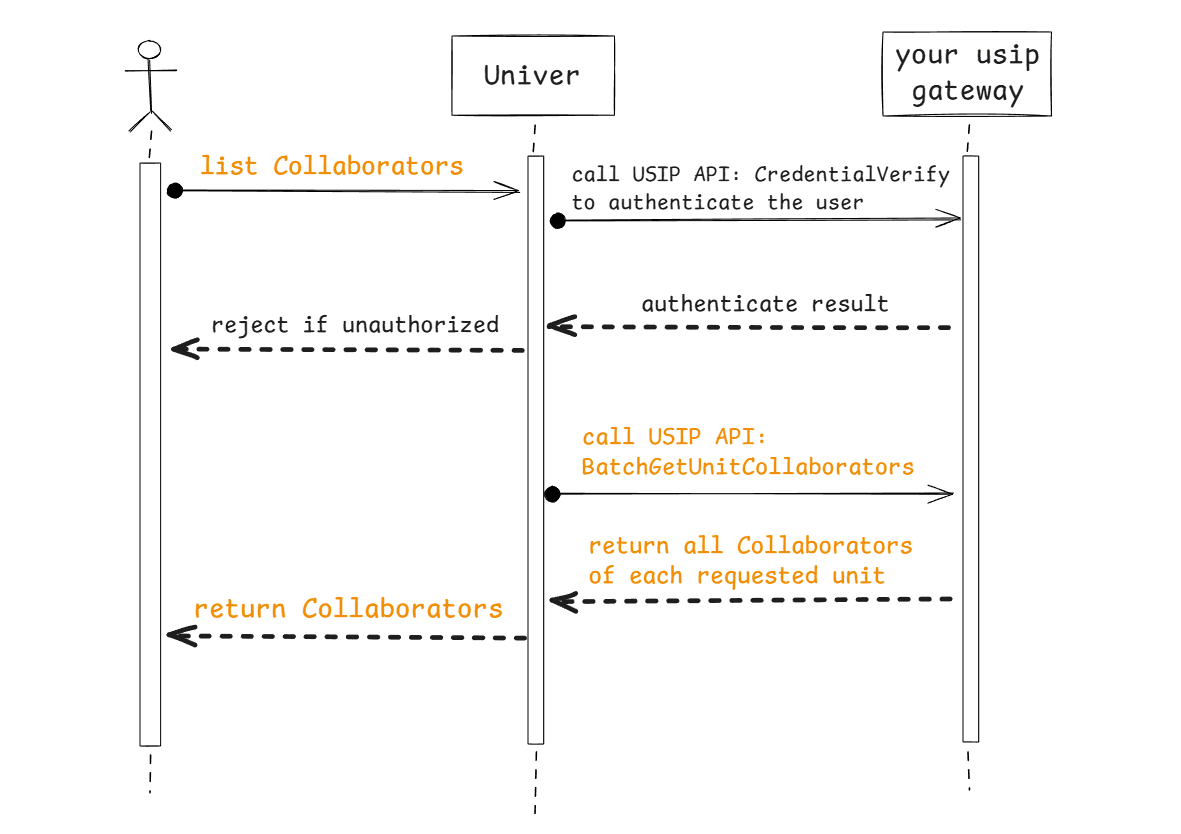

Document Collaborators

When It’s Called

Required when selecting users for protected ranges or sheets.

Flow

API Definition

{  "unitIDs": [    "unit_id1",    "unit_id2",    "unit_id3"  ]}

{  "collaborators": [    {      "unitID": "unit_id1",      "subjects": [        {          "subject": {            "id": "1",            "name": "alice",            "avatar": "https://image.ai/36554",            "type": "user"          },          "role": "owner"        },        {          "subject": {            "id": "2",            "name": "bob",            "avatar": "https://image.ai/36559",            "type": "user"          },          "role": "editor"        }      ]    }  ]}

Notify Last Edit Time

When It’s Called

For your system to display last edit time.

API Definition

{  "unitID": "unit_id1",  "editTimeUnixMs": 1762591632345}

{}

Configure USIP

USIP_ENABLED=true
USIP_URI_CREDENTIAL=https://your-domain/usip/credential
USIP_URI_USERINFO=https://your-domain/usip/userinfo
USIP_URI_ROLE=https://your-domain/usip/role
USIP_URI_COLLABORATORS=https://your-domain/usip/collaborators
USIP_URI_UNITEDITTIME=https://your-domain/usip/unit-edit-time

USIP_APIKEY=

AUTH_PERMISSION_ENABLE_OBJ_INHERIT=false
AUTH_PERMISSION_CUSTOMER_STRATEGIES=

universer:
  config:
    usip:
      enabled: true
      uri:
        userinfo: 'https://your-domain/usip/userinfo'
        collaborators: 'https://your-domain/usip/collaborators'
        role: 'https://your-domain/usip/role'
        credential: 'https://your-domain/usip/credential'
        unitEditTime: 'https://your-domain/usip/unit-edit-time'
      apikey: ''
    auth:
      permission:
        enableObjInherit: false
        customerStrategies: ''

Note: When USIP is enabled, all five endpoints must be configured and implemented.

If your USIP service is exposed on the public network, to ensure API request security, we can follow a mechanism similar to AI API requests. You can generate an API key and configure it in the Univer server. When calling the USIP APIs, the request will include the header x-api-key: API_KEY, which you can use to verify the legitimacy of the request.

Permission Model

Univer uses RBAC with fixed roles: owner, editor, reader. You can override minimum role requirements for permission points.

Default permission points:

To restrict copy/print to owners:

AUTH_PERMISSION_CUSTOMER_STRATEGIES=[{"action": 3, "role": 2}, {"action": 6, "role": 2}]

K8s config:

universer:
  config:
    auth:
      permission:
        customerStrategies: '[ {"action": 3, "role": 2}, {"action": 6, "role": 2} ]'

Object Permission Inheritance

By default, document owners do not automatically own all protected ranges/sheets. To enable inheritance:

AUTH_PERMISSION_ENABLE_OBJ_INHERIT=true

K8s config:

universer:
  config:
    auth:
      permission:
        enableObjInherit: true

Example Implementation

See: https://github.com/dream-num/usip-example

Client Headers

If you need to add custom headers (e.g. Authorization token), use HTTPService interceptors:

import { HTTPService } from '@univerjs/preset-sheets-core'

const injector = univer.__getInjector()
const httpService = injector.get(HTTPService)
httpService.registerHTTPInterceptor({
  priority: 0,
  interceptor: (request, next) => {
    // request.headers.set('Authorization', 'Bearer your-token-here')
    return next(request)
  },
})

import { HTTPService } from '@univerjs/network'

const injector = univer.__getInjector()
const httpService = injector.get(HTTPService)
httpService.registerHTTPInterceptor({
  priority: 0,
  interceptor: (request, next) => {
    // request.headers.set('Authorization', 'Bearer your-token-here')
    return next(request)
  },
})

If you use Edit History, apply the same interceptor to HistoryUniver:

historyLoaderService.historyUniver$.subscribe((historyUniver) => {
  if (!historyUniver) return

  const injector = historyUniver.__getInjector()
  const httpService = injector.get(HTTPService)
  httpService.registerHTTPInterceptor({
    priority: 0,
    interceptor: (request, next) => {
      // request.headers.set('Authorization', 'Bearer your-token-here')
      return next(request)
    },
  })
})

For a full example, see the Univer Pro Sheet starter kit.
