Event Sync

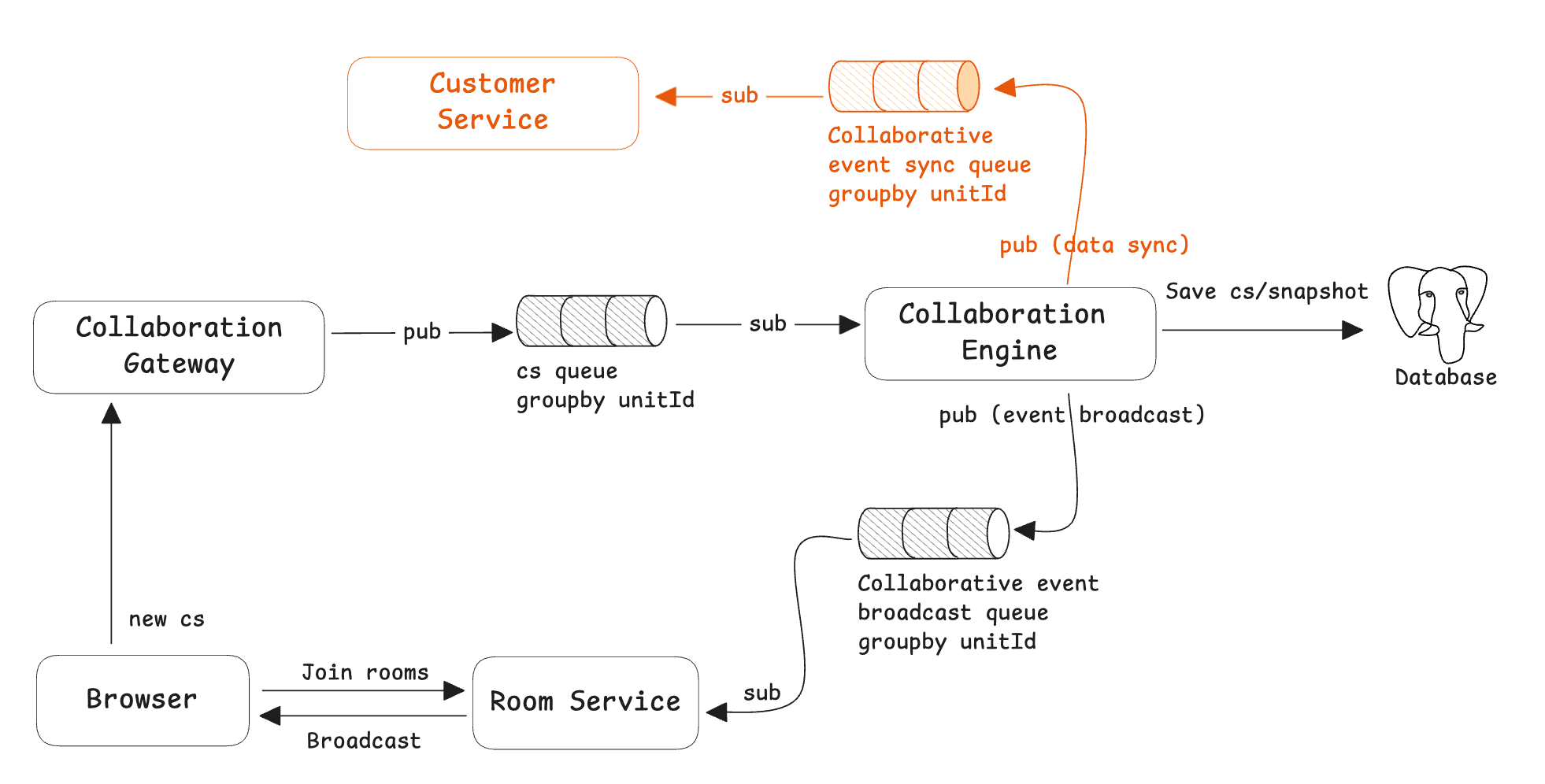

Event Sync publishes collaboration engine events to your system so you can react (auditing, notifications, indexing, etc.).
Use Cases
- Collaboration change audit/replay
- Sync changes to search/indexing pipelines
- External notifications and alerts
Supported events:
- Collaboration edits: persisted changeset
Enable Event Sync
Add to .env.custom:
EVENT_SYNC=trueAdd to values.yaml:
universer:
config:
rabbitmq:
eventSync: trueConsumer Example
See: https://github.com/dream-num/univer-event-sync-example-go
Event Schema
message EventSyncData {
string eventId = 1;
string eventType = 2; // type of event, now support changeset
int32 createdAt = 3;
oneof event {
univer.ChangesetAck csAckEvent = 4;
// more event types in the future.
}
}
message ChangesetAck {
univer.Changeset cs = 1;
}
message Changeset {
string unitID = 1; // unitID of the Univer document
univer.constants.UniverType type = 2;
int32 baseRev = 3;
int32 revision = 4;
string userID = 5;
repeated Mutation mutations = 6;
string memberID = 7;
}
message Mutation {
string id = 1; // ID of the mutation
string data = 2; // serialized params
